A Versatile All-Season Commuter Bike
If you’re like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack.
Ogre is designed to be the ultimate steel utility vehicle. It relishes in those “take-the-long-way-home-and-find-some-beverages-along-the-way” sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you don’t even have to go home if you don’t want to.
- All the barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.
- Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount
- Clearance for 29” x 2.5” or 27.5" x 2.8" tyres with mudguards
Surly - Ogre 29 - 2024 Frame Set - Fermented Plum
Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

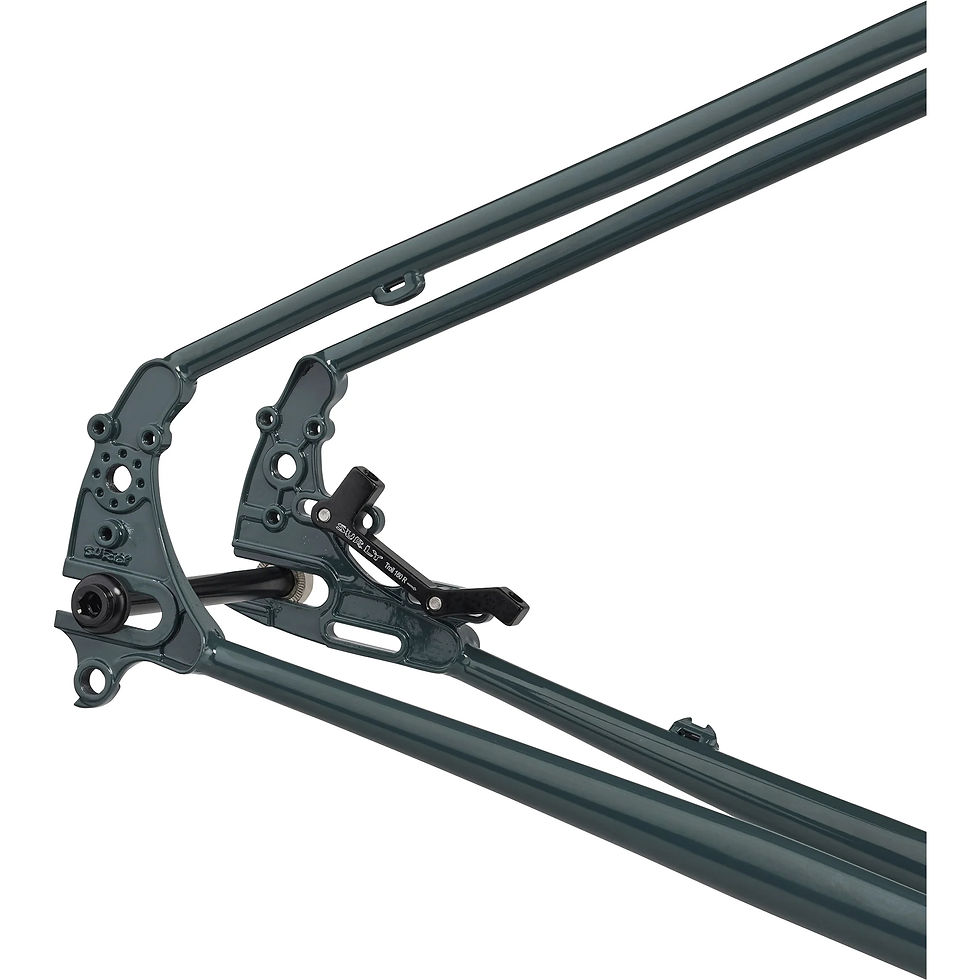

Rear Dropout Configuration
Horizontal slotted with optional vertical dumpout
Rear Hub Spacing
"Gnot-Boost" 145mm
12 x 142mm or 12 x 148mm (axle included)
10 x 135mm with Surly 10/12 Adapter Washers (not included)
Front Hub Spacing
10 x 100mm
Rear Brake
Disc - 51mm I.S. (160mm max rotor) [5]
Rim - Canti (removable posts)"
Front Brake
Disc - 51mm I.S. (203mm max rotor)
Head Tube
Ø34mm
Steerer Tube
Ø28.6mm (1-1/8")
Crown Race
Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.)
EC34/28.6
Stock Headset Lower (S.H.I.S.)
EC34/30
Seat Collar
Ø30mm
Seatpost
Ø27.2mm
Front Derailleur (Clamp)
High direct mount top-pull (Ø31.8mm)
26mm offset adapter (not included) for 142 or 135mm rear hub spacing
29mm offset adapter (not included) for 148mm rear hub spacing
Max Chainring (CL)[3]
1x (Mtn): 42T
2x (Mtn): 34/46T
3x (Mtn): 24/36/48T
1x (Boost): 46T
2x (Boost): 42/48T
Bottom Bracket
73mm threaded (1.37" x 24TPI)
Tire Clearance Frame [1]/[2]
27.5 x 3.0” (27.5 x 2.8" with fenders)
29 x 2.6" (29 x 2.5" with fenders)
Tire Clearance Fork [1]
27.5 x 3.0" (w/o fenders) 27.5 x 2.8" (w/ fenders)
29 x 2.6" (w/o fenders) 29 x 2.5" (w/ fenders)
Rigid Fork Spec
447 x 43mm
Max Suspension Fork Length [4]
N/A
Bottle Mounts Frame
2 Three-Pack (XS-SM)
1 Standard + 2 Three-Pack (MD - XL)
Bottle Mounts Fork
4 Three-Pack
Rack Mounts Frame
Yes (upper and lower threaded)
Rack Mounts Fork
Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame
Yes
Fender Mounts Fork
Yes
Other Features
Dedicated Rohloff cable routing and mount for OEM 2 axle plate
Dedicated Surly Trailer mounts
