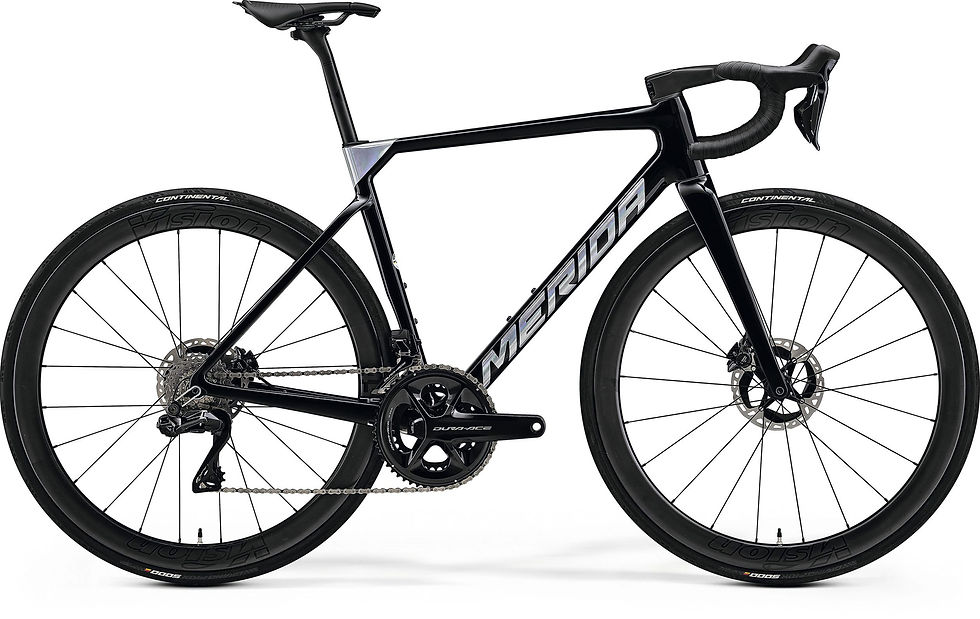

Merida - Scultura Team - 2024
Bahrain Victorious ProTour Team bike with superlight carbon frameset, carbon wheelset and Shimano Dura Ace Di2.

Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures. The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry. Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made. The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!

Merida - Scultura Team - 2024

£7,999.00Price

  • SPECIFICATION

    FRAME

    • CF5 carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c

    FORK

    • Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c; Disc cooler technology

    GEARS

    • 24

    SHIFTERS

    • Shimano Dura Ace disc Di2

    FRONT DERAILLEUR

    • Shimano Dura Ace Di2

    REAR DERAILLEUR

    • Shimano Dura Ace Di2

    BOTTOM BRACKET

    • Shimano BB92-41B, Pressfit 86.5

    CHAIN

    • Shimano CN-M9100-12

    CHAINSET

    • Shimano Dura Ace; 52-36 tooth chainset; Power Meter. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S,M), 175mm (L,XL)

    CASSETTE

    • Shimano CS-R9200; 11-30 teeth; 12 speed

    BRAKE LEVER

    • Shimano Dura Ace disc

    FRONT BRAKE

    • Shimano Dura Ace hydraulic disc brake caliper with Shimano CL900 160mm rotor

    REAR BRAKE

    • Shimano Dura Ace hydraulic disc brake caliper with Shimano CL900 140mm rotor

    GRIP

    • Prologo One-Touch

    HANDLEBAR

    • Team SL 1P Integrated; carbon; Width: 400mm (XXS,XS), 420mm (S,M,L), 440mm (XL) with Garmin + GoPro/Light Mount

    STEM

    • Team One-Piece Integrated; carbon. Length 90mm (XXS,XS), 100mm (S), 110mm (M) 120mm (L,XL)

    HEAD SET

    • Merida Team SL; OP-203 neck

    PEDAL

    • Not included

    SADDLE

    • Prologo Scratch M5 with V-mount adapter; including Merida minitool

    SEAT POST

    • Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex

    WHEEL SIZE

    • 700c

    RIMS

    • Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 18mm inner rim width; 45mm rim depth; carbon; Tubeless ready (tubeless tape and valves included)

    SPOKES

    • Part of wheelset

    FRONT HUB

    • Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 100x12mm; Centerlock with Merida Expert SL axle

    REAR HUB

    • Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 142x12mm; Centerlock with Merida Expert SL axle including removable 6/4mm allen key

    FRONT TYRE

    • Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead, folding; tubeless ready

    REAR TYRE

    • Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead, folding; tubeless ready

    COLOUR

    • Black/Silver
