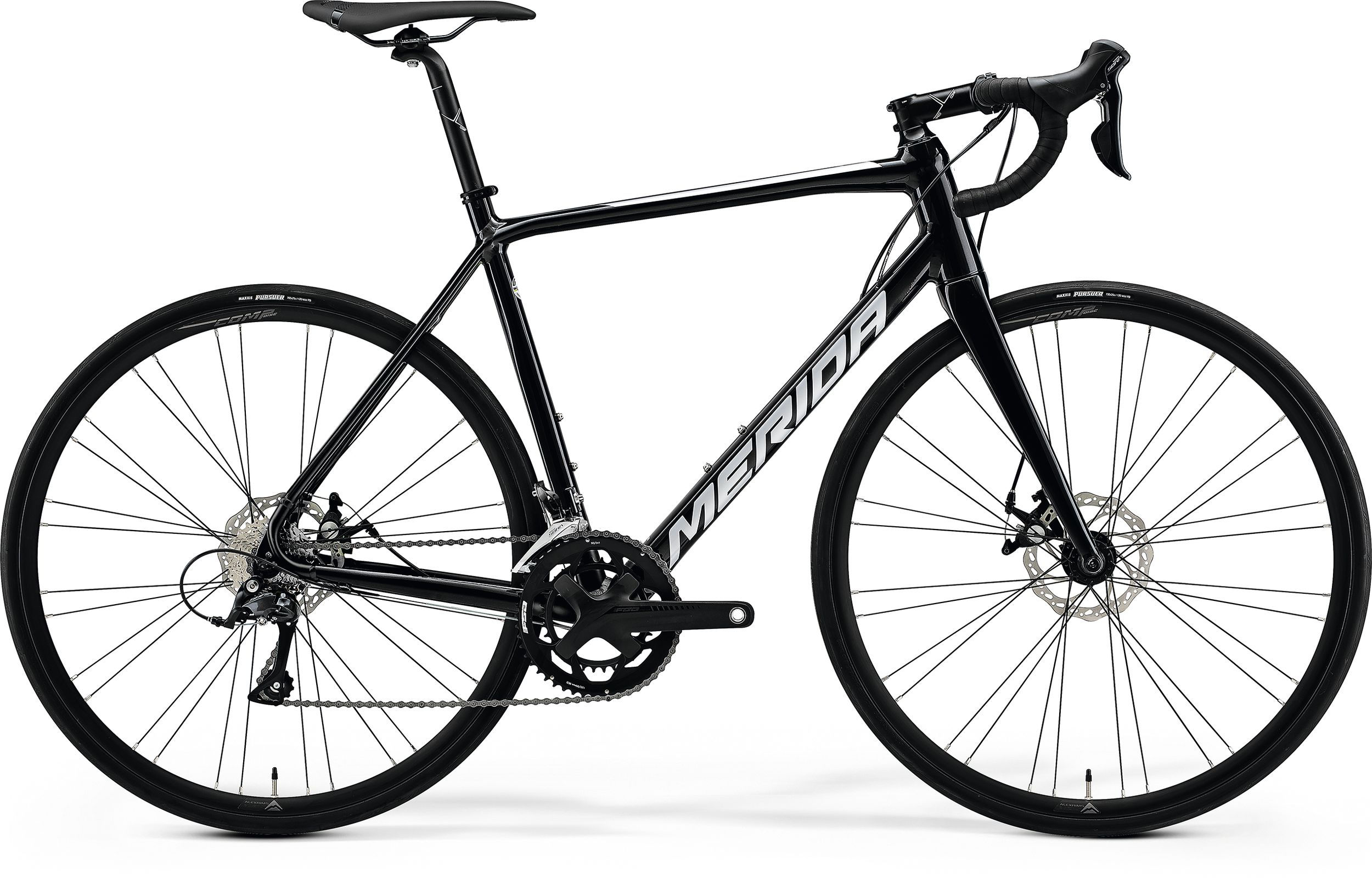

Merida - Scultura 200 - 2024
Lightweight aluminium road bike with full carbon tapered fork, 18 speed Shimano Sora and Promax mechanical disc brakes.

The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories. The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.

Merida - Scultura 200 - 2024

£1,125.00Price

  • SPECIFICATION

    FRAME

    • Lite - Hydroformed triple butted 6066 aluminium with smooth welding.  Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max tyre size 700 x 28c

    FORK

    • Scultura CF2 Disc; Full carbon; tapered steerer. Max tyre size: 700 x 28c

    GEARS

    • 18

    SHIFTERS

    • Shimano Sora

    FRONT DERAILLEUR

    • Shimano Sora

    REAR DERAILLEUR

    • Shimano Sora; GS

    BOTTOM BRACKET

    • FSA BB-AL86/Ø19

    CHAIN

    • KMC M99

    CHAINSET

    • FSA Omega; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L,XL)

    CASSETTE

    • Microshift CS-9S; 11-28 teeth; 9 speed

    BRAKE LEVER

    • Shimano Sora

    FRONT BRAKE

    • Promax DSK-330R mechanical disc brake caliper with Promax 160G 160mm rotor

    REAR BRAKE

    • Promax DSK-330R mechanical disc brake caliper with Promax 160G 160mm rotor

    GRIP

    • Merida Road Comp

    HANDLEBAR

    • Merida Expert SLII; aluminium; Width 380mm (XXS), 400mm (XS), 420mm (S,M,L), 440mm (XL)

    STEM

    • Merida Comp CC; 31.8mm diameter; aluminium; -7 degree rise. Length 80mm (XXS,XS), 90mm (S), 100mm (S/M, M/L) 110mm (L,XL)

    HEAD SET

    • Merida M2339 Neck

    PEDAL

    • Not included

    SADDLE

    • Merida Comp SL with V-mount

    SEAT POST

    • Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back

    WHEEL SIZE

    • 700c

    RIMS

    • Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)

    SPOKES

    • Black stainless

    FRONT HUB

    • Joytech D981-12; 100x12mm; 28 spokes with Merida Expert SL axle

    REAR HUB

    • Joytech D982TSE-R; 142x12mm; 28 spokes with Merida Comp SL axle including removable 6/4mm allen key

    FRONT TYRE

    • Maxxis Pursuer; 700 x 25C; Kevlar bead, folding

    REAR TYRE

    • Maxxis Pursuer; 700 x 25C; Kevlar bead, folding

    COLOUR

    • Black/Silver
