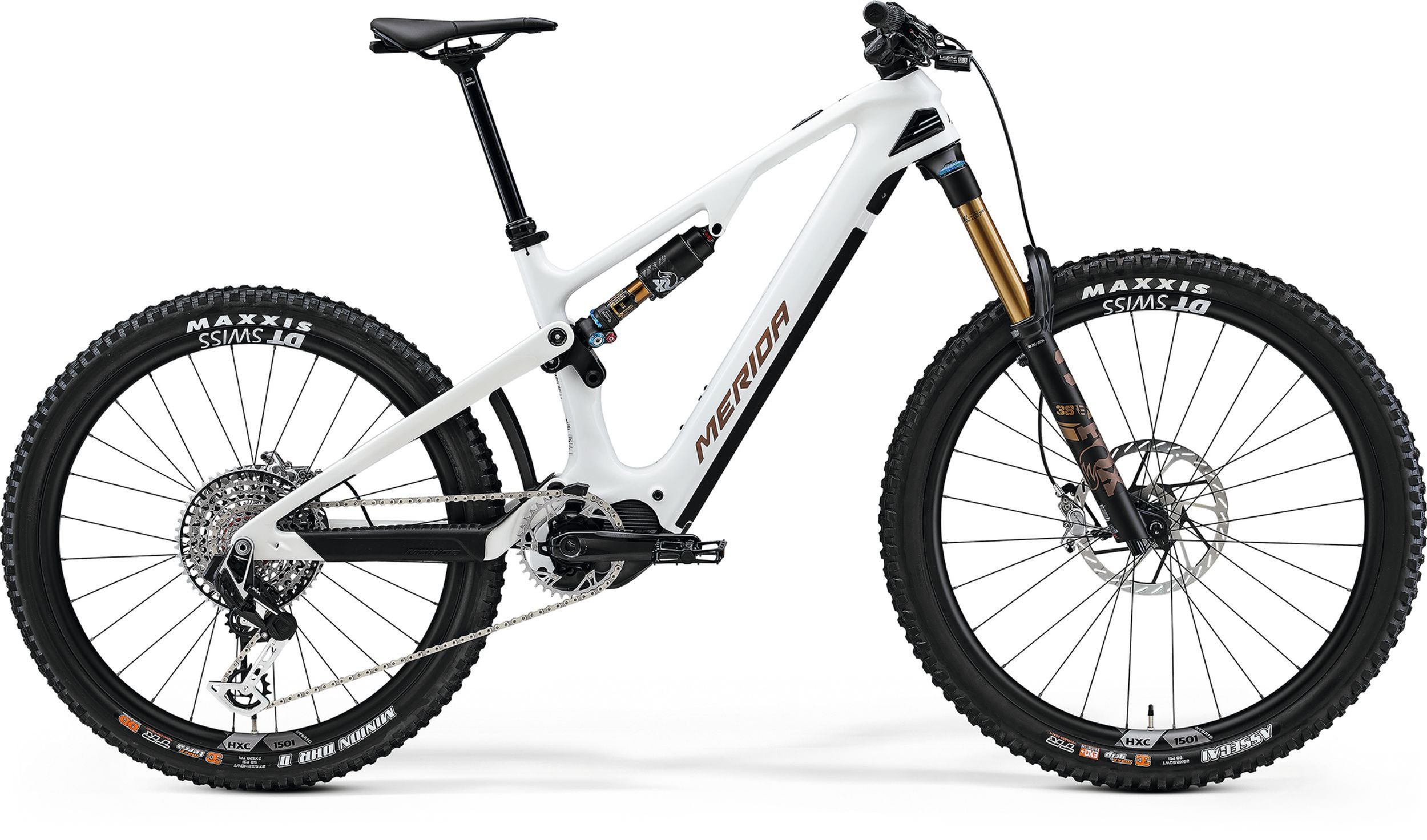

Merida - eOne Sixty 10k - 2024
Our King of the range, carbon frame is paired with the powerful, lightweight Shimano 85Nm EP801 motor and an integrated 600 Wh battery to minimise weight. Componentry includes a Fox 38 Performance fork, a Fox Factory Float X2 shock, SRAM XX Eagle Transmission AXS wireless and chainset, Maxxis tyres and a DT Swiss carbon tubeless ready wheelset.

Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Merida - eOne Sixty 10k - 2024

£10,499.00Price

  • SPECIFICATION

    FRAME

    • Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"

    MOTOR

    • Shimano Steps EP801; 85Nm

    BATTERY

    • Simplo Trend Power internal battery; 600Wh

    BATTERY CAPACITY

    • 600Wh

    EBIKE DISPLAY

    • Shimano SC-EM800

    CHARGER

    • Trendpower Simplo EU Charger; 4A

    POWER BUTTON

    • Shimano satellite system on/off; EWSW310

    MODE SWITCH

    • Shimano SW-EM800-L

    SHOCK

    • FOX Factory Float X2; 2 Pos Lever

    FORK

    • FOX 38 Factory eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"

    GEARS

    • 12

    SHIFTERS

    • Limotech RM10 dropper post lever and SRAM AXS Pod Controller

    REAR DERAILLEUR

    • SRAM XX Eagle Transmission AXS wireless

    BOTTOM BRACKET

    • Part of Shimano Steps motor

    CHAIN

    • SRAM XX Eagle Transmission; Flattop

    CHAINSET

    • SRAM XX Eagle Transmission E-MTB for Steps; 34 tooth chainset with Shimano FC-EM900 165mm length crank all sizes; hollow with MRP 1x chainguide

    CASSETTE

    • SRAM XX Eagle Transmission ; 10-52; 12 speed

    BRAKE LEVER

    • SRAM Code Ultimate Stealth

    FRONT BRAKE

    • SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor

    REAR BRAKE

    • SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor

    GRIP

    • Merida Expert EC

    HANDLEBAR

    • Merida Expert eTR; 780mm wide; 20mm rise

    STEM

    • Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.

    HEAD SET

    • Acros ICR Merida integrated neck w/ Blocklock

    PEDAL

    • VP Components - VPE-527

    SADDLE

    • Proxim W400 T2.0 with V-mount adapter; including Merida minitool

    SEAT POST

    • Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

    WHEEL SIZE

    • 29" / 27.5"

    RIMS

    • Part of wheelset - DT Swiss Spline HXC1501 spline 30 boost; carbon; Tubeless ready (tubeless tape and valves included)

    SPOKES

    • Part of wheelset

    FRONT HUB

    • Part of wheelset - DT Swiss Spline HXC1501 spline 30 boost; 110 x 15mm; 6-Bolt

    REAR HUB

    • Part of wheelset - DT Swiss Spline HXC1501 spline 30 boost; 148 x 12mm; SRAM XD; 6-Bolt with Merida Expert TR axle including removable 6/4mm allen key

    FRONT TYRE

    • Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

    REAR TYRE

    • Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR

    COLOUR

    • White/Bronze

    SEASON

    • 2024

    FRONT LIGHT

    • Lezyne Power STVZO E115, reverse Merida Custom Mount

    REAR LIGHT

    • Lezyne LED FEMTO USB REAR STVZO

    OTHER

    • Merida Team bottle cage, On-bike charging cable and rear fender
