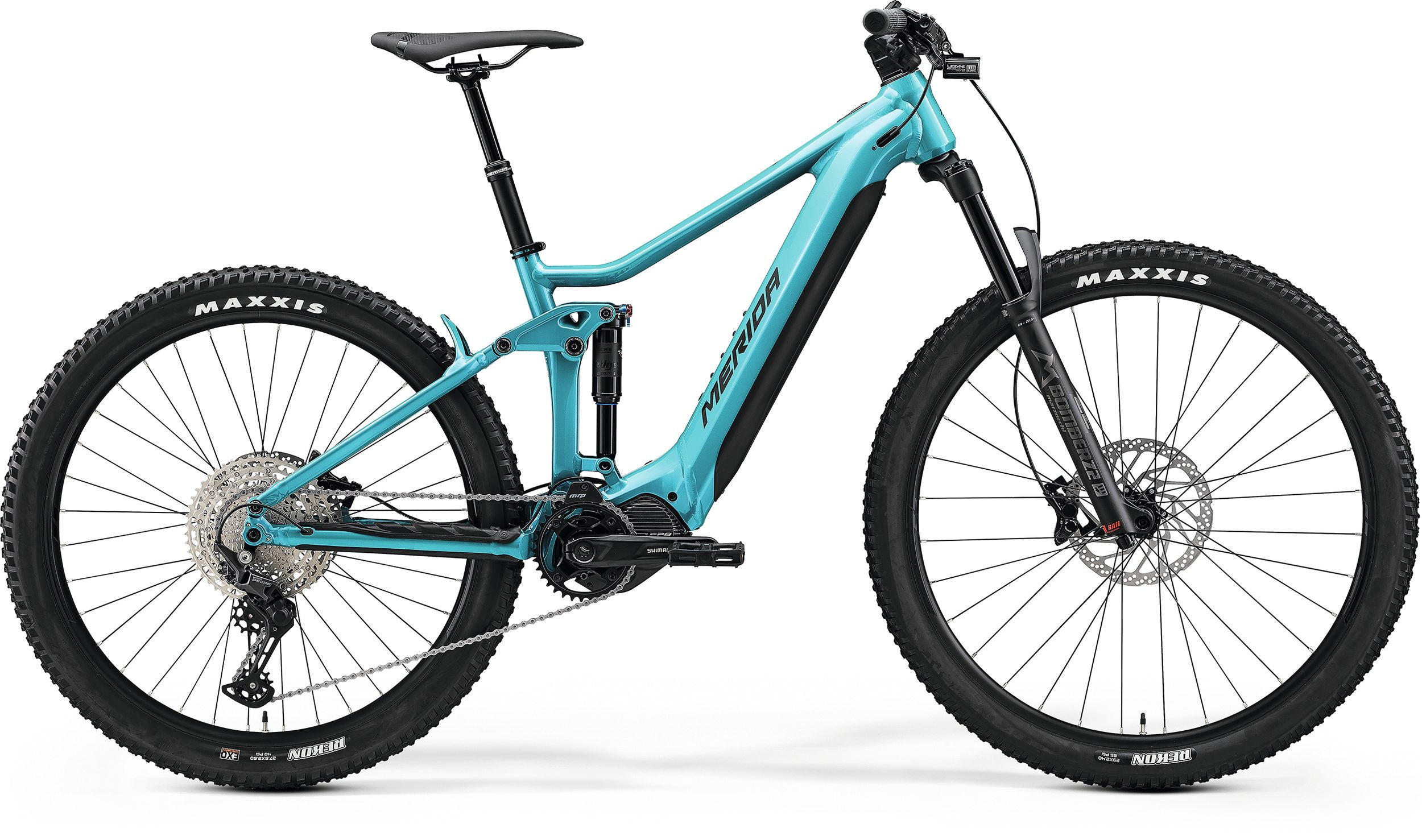

Merida - eOne Forty 500 - 2023
Aluminium full suspension eBike with 630Wh battery and 85Nm Shimano EP600 motor. Marzocchi Z2 140mm fork, SR Suntour air shock and Shimano Deore 11 speed transmission.

The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight! The eOne-Forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding. The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction. All eOne-Forty models use the powerful Shimano EP600 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh). Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.

Merida - eOne Forty 500 - 2023

£4,650.00 Regular Price
£3,799.00Sale Price

  • SPECIFICATION

    FRAME

    • Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".

    MOTOR

    • Shimano Steps EP6; 85Nm

    BATTERY

    • Shimano EN806; 630Wh internal battery

    BATTERY CAPACITY

    • 630Wh

    EBIKE DISPLAY

    • Shimano SC-EN500

    CHARGER

    • Shimano EC-E6002; 2A charging current

    POWER BUTTON

    • Merida Power Cap button

    MODE SWITCH

    • Shimano SC-EN500

    SHOCK

    • Suntour RS-Edge-TR-LO-R8-M6; lockout

    FORK

    • Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6"

    GEARS

    • 11

    SHIFTERS

    • Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever

    REAR DERAILLEUR

    • Shimano Deore RDM5100 11

    BOTTOM BRACKET

    • Part of Shimano Steps motor

    CHAIN

    • KMC e11S EPT

    CHAINSET

    • Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank

    CASSETTE

    • Shimano M5100; 11-51 teeth; 11 speed

    BRAKE LEVER

    • Shimano M4204

    FRONT BRAKE

    • Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RT30 203 mm rotor

    REAR BRAKE

    • Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RTEM300 203 mm rotor

    GRIP

    • Merida Expert EC

    HANDLEBAR

    • Merida Expert eTR; 780mm wide; 20mm rise

    STEM

    • Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm all sizes; GoPro & Supernova mount

    HEAD SET

    • Merida-8152

    PEDAL

    • VP Components - VPE-537

    SADDLE

    • Merida Comp SL with V-mount

    SEAT POST

    • Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)

    WHEEL SIZE

    • 29" / 27.5"

    RIMS

    • Merida Comp TR; 29mm inner rim width; Aluminium

    SPOKES

    • Black stainless

    FRONT HUB

    • Shimano MT400-B; 110x15mm; 32 spokes; Center lock

    REAR HUB

    • Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key

    FRONT TYRE

    • Maxxis Rekon; 29" x 2.4"; wire bead; dual

    REAR TYRE

    • Maxxis Rekon; 27.5" x 2.6"; wire bead; EXO

    COLOUR

    • Teal/Black

    SEASON

    • 2023

    FRONT LIGHT

    • Lezyne eBike Power STVZO E115 front light

    REAR LIGHT

    • USB REAR Light CG-214RG

    OTHER

    • Complete with: mini fenders and front / rear lights. Shimano Satellite charging port; EW-CP100
