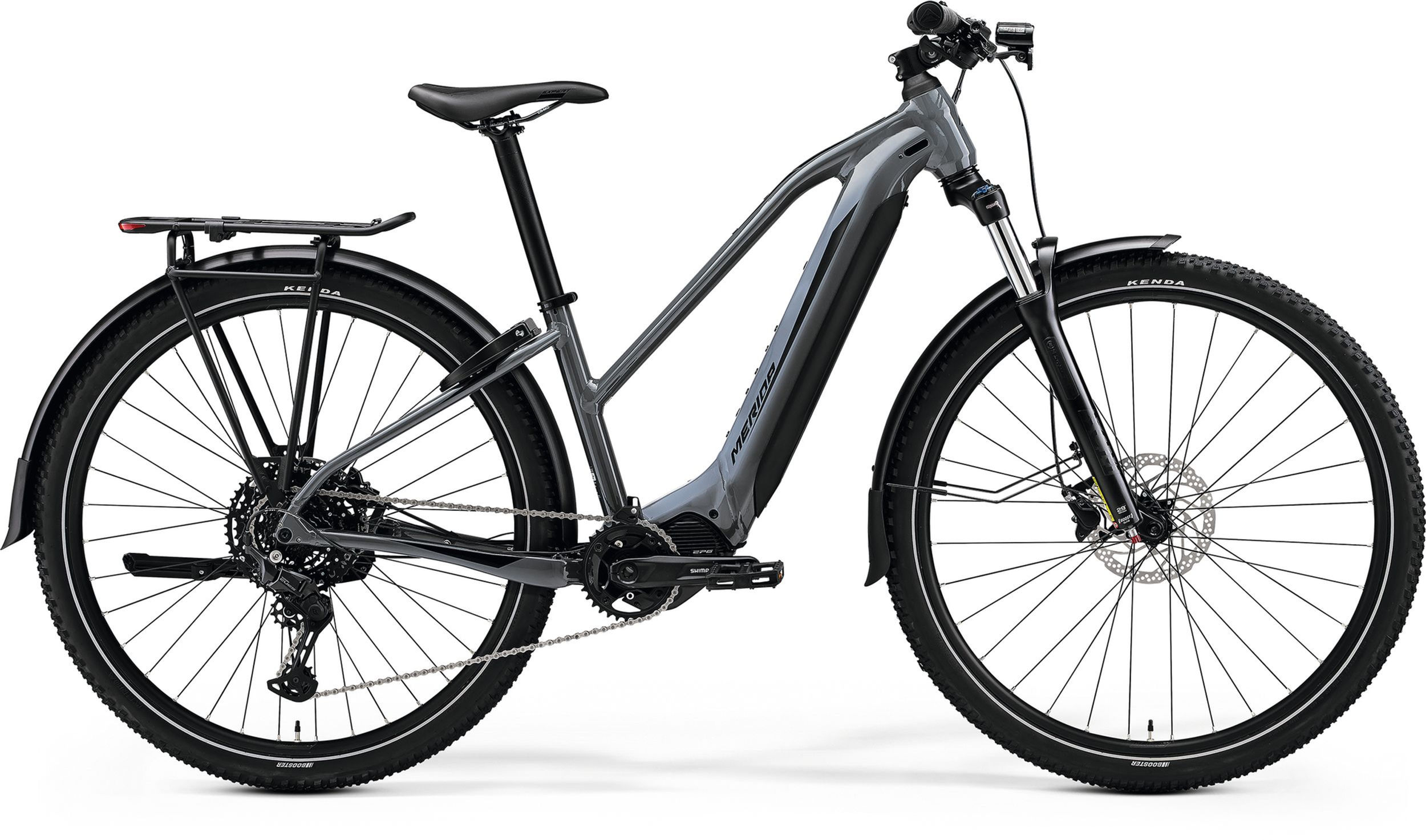

Merida - eBig Tour 400 - 2024
Versatile hardtail eMTB with 85Nm Shimano Steps EP6 motor and 630Wh battery, Equipped with mudguards and rack for all year practicality. 10 gears, Suntour XCM34 fork and hydraulic disc brakes.

The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year round practicality. The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride. Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing. The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.

Merida - eBig Tour 400 - 2024

£3,250.00Price

  • SPECIFICATION

    FRAME

    • Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without

    MOTOR

    • Shimano Steps EP6; 85Nm

    BATTERY

    • Shimano EN806; 630Wh internal battery

    BATTERY CAPACITY

    • 630Wh

    EBIKE DISPLAY

    • Shimano SC-EN500

    CHARGER

    • Shimano EC-E6002; 2A charging current

    POWER BUTTON

    • CAP-045, Merida Power Button

    FORK

    • Suntour XCM34-Boost LOR DS; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"

    GEARS

    • 10

    SHIFTERS

    • Shimano CUES U6000

    REAR DERAILLEUR

    • Shimano CUES U6000; GS

    BOTTOM BRACKET

    • Part of Shimano Steps motor

    CHAIN

    • Shimano LG500

    CHAINSET

    • Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide

    CASSETTE

    • Shimano LG300; 11-48 teeth; 10 speed

    BRAKE LEVER

    • Shimano MT200

    FRONT BRAKE

    • Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor

    REAR BRAKE

    • Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor

    GRIP

    • Merida Expert TK

    HANDLEBAR

    • Merida Expert CC; aluminium; 720mm wide; 10mm rise

    STEM

    • Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes

    HEAD SET

    • Merida-8155 (for steerer 1-1/8"~1.5")

    PEDAL

    • VP Components - VPE-537

    SADDLE

    • Merida Expert TK; V-mount

    SEAT POST

    • Merida Expert CC; aluminium; 34.9mm diameter; in-line

    WHEEL SIZE

    • 29"

    RIMS

    • Merida Comp CC II; 25mm inner rim width; aluminium

    SPOKES

    • Black stainless

    FRONT HUB

    • Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock

    REAR HUB

    • Shimano TC500-HM-B; 148 x 12mm; 36 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key

    FRONT TYRE

    • Kenda Booster; 29" x 2.2"; wire bead

    REAR TYRE

    • Kenda Booster; 29" x 2.2"; wire bead

    COLOUR

    • Grey/Black

    SEASON

    • 2024

    FRONT LIGHT

    • Lezyne Hecto STVZO E65 front light

    REAR LIGHT

    • Spanninga Commuter Glow XE integrated rear light

    OTHER

    • Complete with: mudguards, kickstand, frame lock and Merida carrier with spring clip and integrated rear light
