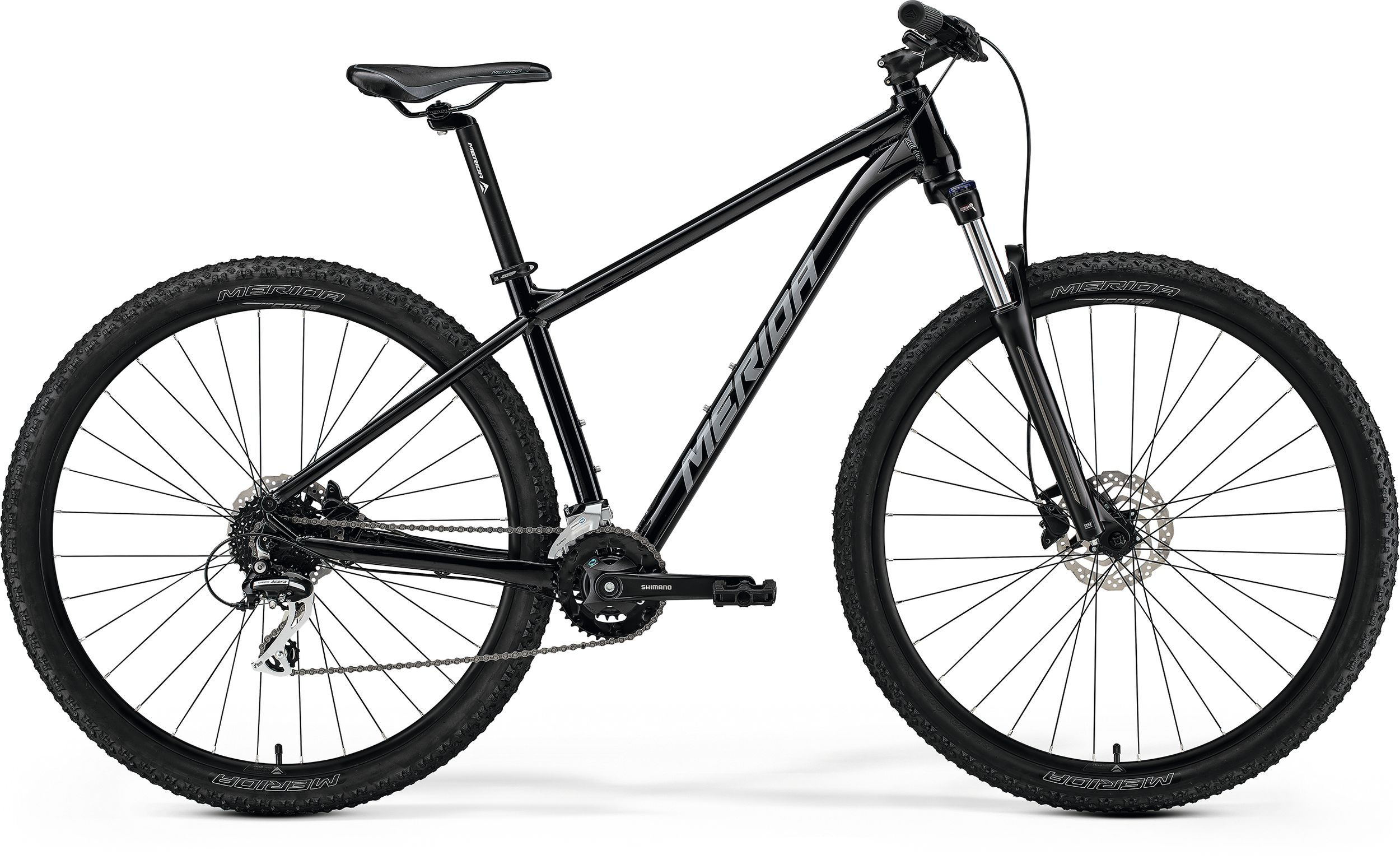

Merida - Big Seven 20 - 2023
650b hardtail with sophisticated TFS aluminium frame, 2 x 8 transmission, lockout fork, hydraulic disc brakes, Shimano hubs and chainset.

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Seven for shorter riders and Big Nine for taller riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

Merida - Big Seven 20 - 2023

£700.00 Regular Price
£660.00Sale Price
Colour

  • SPECIFICATION



    FRAME

    • TFS III - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.25"

    FORK

    • Suntour XCT30 HLO; Coil; 100mm travel; Lockout. Max. tyre size: 27.5" x 2.25"

    GEARS

    • 16

    SHIFTERS

    • microSHIFT SL-M850

    FRONT DERAILLEUR

    • Shimano FD-M315-TS

    REAR DERAILLEUR

    • Shimano RD-M360

    BOTTOM BRACKET

    • FSA TH-7420ST-W, Cartridge Bearing

    CHAIN

    • Sunrace M84

    CHAINSET

    • Shimano FC-M315-2; 36-22 tooth chainset. Crank length: 170mm (XS,S), 175mm (M,L)

    CASSETTE

    • Sunrace CSM558AU; 11-32 teeth; 8 speed

    BRAKE LEVER

    • Power DS-100HT

    FRONT BRAKE

    • Power DS-100HT; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor

    REAR BRAKE

    • Power DS-100HT hydraulic disc brake caliper with Shimano RT10; 160mm rotor

    GRIP

    • Merida EC

    HANDLEBAR

    • Merida CC; aluminium; 690mm wide; 15mm rise

    STEM

    • Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (XS/S), 80mm (M), 90mm (L)

    HEAD SET

    • Merida M2345

    PEDAL

    • VP Components, VPE-891

    SADDLE

    • Merida Sport comfort

    SEAT POST

    • Merida CC; aluminium; 30.9mm diameter; 15mm lay back

    WHEEL SIZE

    • 27.5"

    RIMS

    • Merida CC; 17mm inner rim width; aluminium

    SPOKES

    • Black steel

    FRONT HUB

    • Shimano TX505; 100x9mm; 32 spokes; Center lock

    REAR HUB

    • Shimano TX505; 135x9mm; 32 spokes; Center lock

    FRONT TYRE

    • Merida K1080; 27.5" x 2.2"; wire bead

    REAR TYRE

    • Merida K1080; 27.5" x 2.2"; wire bead

    COLOUR

    • Black/Silver

    SEASON

    • 2023
